    Product Details:

    Place of Origin: China
    Brand Name: Tai Lian
    Certification: GB standard ASME CE TUV
    Model Number: KDON-3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD1000000-USD5000000
    Packaging Details: Export Standard Packing
    Delivery Time: 3-4months
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description

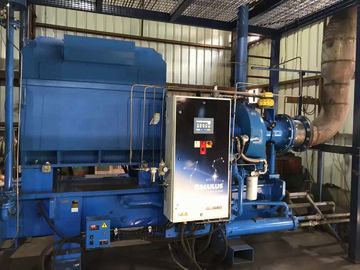

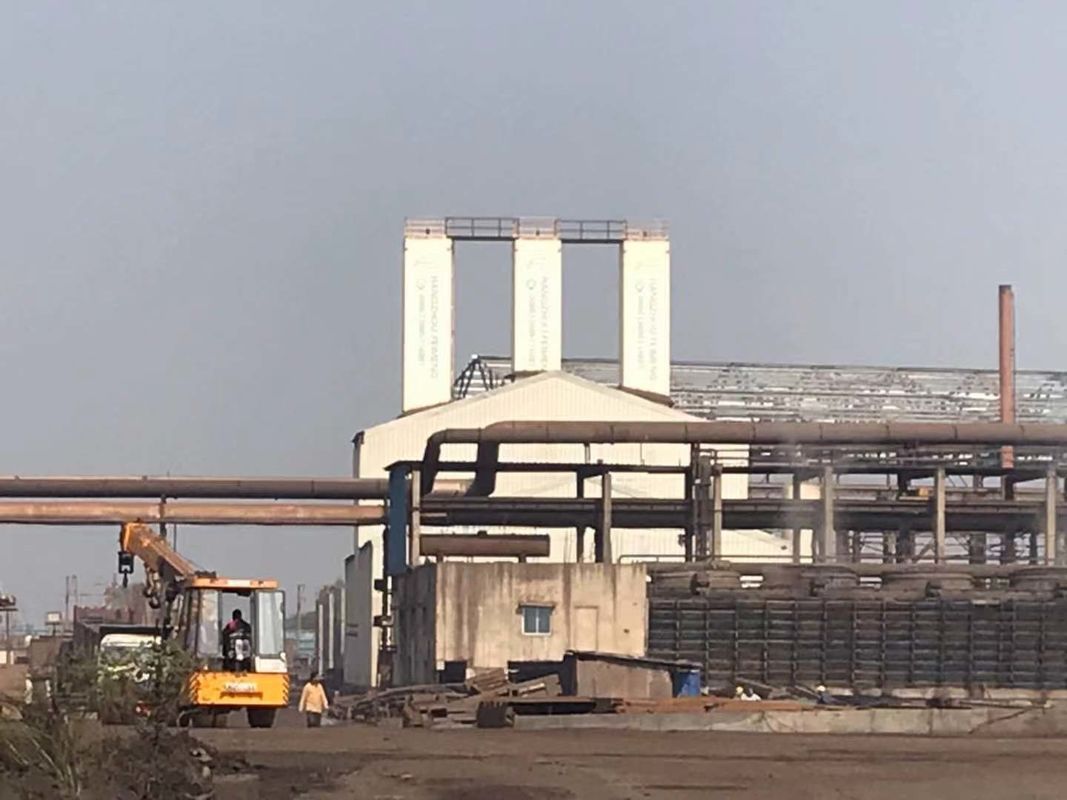

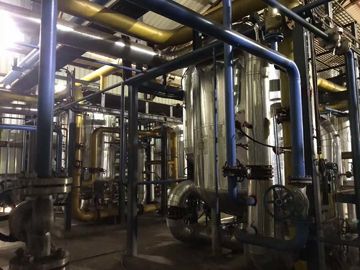

    3000Nm3/h Series Liquid Air Separation Plant KDONAr-3000Y/4750Y/100Y, LOX, LIN, LAr, Industry Liquid





    Specifications:



    Liquid ASP Series



    The followings are the standard products for the liquid air separation plants (produce argon) of 2000~3000 Nm3/h series which are manufactured by our company. Regarding other particular product can be calculated and designed according to the actual requirements.



    MODEL

    CONTENTS

    KDON-2200Y/300Y KDON-3000Y/3000Y KDON-2700Y/4000Y KDON-3000Y/550Y
    LOX flow Nm3/h*

    2200

    (+500 GOX)

    2190

    (+500 GOX)

    2800

    (+200 GOX)

    3000
    LOX purity %(O2) 99.8 99.8 99.8 99.6
    LOX pressure MPa

    ~0.15

    (0.016)

    ~0.15

    (15)

    ~0.15

    (15)

    ~0.1
    LIN flow Nm3/h*

    300

    (+2600 GAN)

    3500

    (+500 GAN)

    550

    (+2000 GAN)

    3000

    (+3000 GAN)

    LIN purity ≤1ppm ≤5ppm ≤5ppm ≤2ppm
    LIN pressure MPa

    ~0.25

    (0.07)

    ~0.2

    (0.45)

    ~0.25

    (0.08)

    ~0.2

    (0.008)

    LAr flow Nm3/h 95 70 106 120
    LAr purity %(Ar) 99.999 99.999 99.999 99.999
    LAr pressure MPa 0.1 0.1 0.1 0.2
    Start-up time h ~30 ~24 ~24 ~24
    Operating period ≥2(y) ≥2(y) ≥2(y) ≥2(y)







    Typical Product



    Output, purity and pressure





    Product Output(Nm3/h) Purity

    Pressure and temperature ex. cold box

    (kPa/℃)

    LOX 3,000 ≥99.6%O2 ~160/-183
    LIN 4,750 ≤2ppmO2 ~200/-182
    GAN 2,000 ≤2ppmO2 ~15/37
    LAr 100 ≤2ppm O2,≤3ppm N2 ~120/-183





    Second operating mode:



    Product Output(Nm3/h) Purity

    Pressure and temperature ex. cold box

    (kPa/℃)

    LOX 3,250 ≥99.6%O2 ~160/-183
    LIN 4,400 ≤2ppmO2 ~200/-182
    GAN 2,000 ≤2ppmO2 ~15/37
    LAr 110 ≤2ppm O2,≤3ppm N2 ~120/-183



    Note: 1. All pressures which are not specially defined below are the gauge pressures.

    2. Nm3 /h is defined as the volume at 0℃, 101.3kPa(A);

    3. The liquid output is calculated from data of gas, and the pressure is calculated with 0 meter high at outlet of cold box.





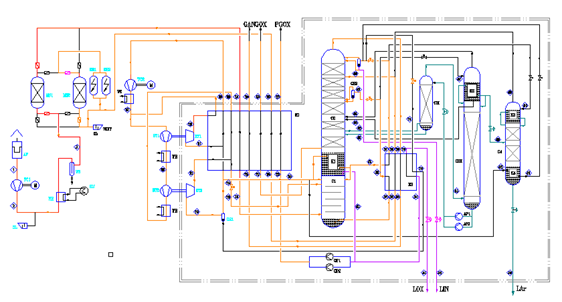

    Process Description:



    The proposed Air Separation Plant employs a process in which air is purified by molecular sieve at normal temperature, high/low temperature booster expansion turbine is used to produce refrigerating capacity, medium pressure nitrogen for circulation, structural packing is applied and argon is extracted through full rectification.



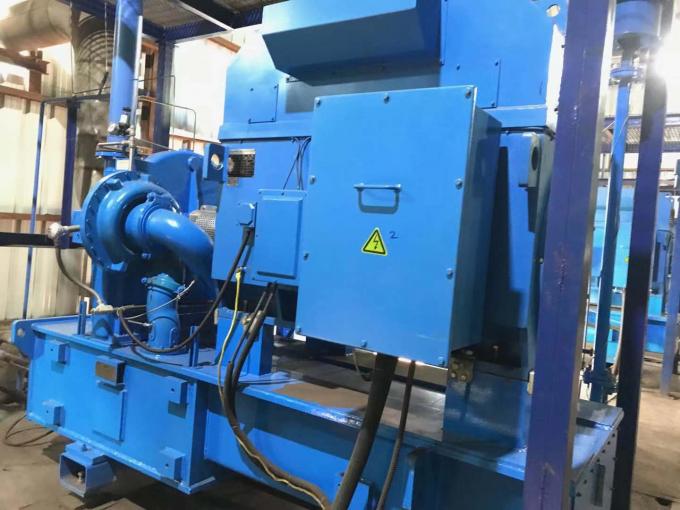

    2000 ~ 3000Nm3/h Series Cryogenic Air Separation Plant with Carbon Steel , Aluminum











    Applications:



    1. Basic oxygen steelmaking;



    2. The complete set of air separation plant and accessory equipments are the necessary important technical equipments for the basic industry (metallurgy, chemical industry, etc.) of national economy and tech fields (aerospace aviation, nuclear submarine, etc.).



    3. Used for inerting storage tanks of ships and tanks for petroleum products, or for protecting edible oil product from oxidation.



    4.It is appropriate for the industries and fields such as chemical industry, petroleum, electric power, steel, medical treatment, food, electronic, construction, print and automobile, etc.



    5. Coal gasification projects;





    Competitive Advantage:







    1. The fractionating column employs the advantages of high extraction efficiency of oxygen and argon with low power consumption. The control system for the ASP is advanced, reliable and cost-effective.



    2.In order to guarantee the optimum technical and economical targets, the advanced software for performance calculation is used to calculate and analyze the optimized process while the program developed by Hangyang itself and verified in many air separation plants is used for rectification calculation.



    3.. We offer a wide range of services including design, manufacturing, installation, commissioning, personnel training and after-sales serivce.



    4. The proposed air separation plant is designed for long, stable and reliable running, economization of energy, convenient operation and maintenance and the up-to-date international advanced air separation technology is incorporated.



    5. The control system for the ASP is advanced, reliable and cost-effective.
