|Place of Origin:||Hangzhou,China|
|Minimum Order Quantity:||1 pc|
|Packaging Details:||wooden case|
|Delivery Time:||a month after payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||100 pcs per month|
|Production Name:||PSA Plant||Power:||108.66KW|
|Voltage:||220V/380,50hz||Place Of Origin:||Hangzhou,China|

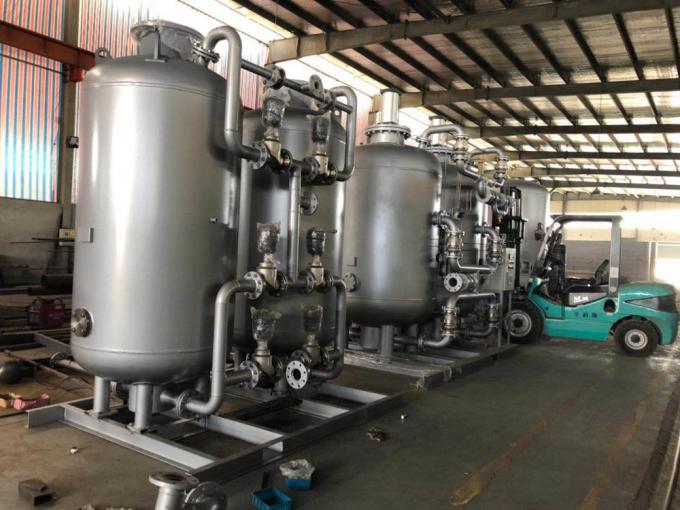

150nm3/h PSA Oxygen Generator industrial and Medical Air Separation Plant Oxygen Plant
Oxygen is an indispensable gas for supporting life in the earth, special in the hospital, medical oxygen plays a very important role to saving the patients.
ETR Air Separation Unit Hospital Medical Gas Zeolite PSA Oxygen Generator Price For Sale can produce medical level oxygen from the air directly, the produced oxygen can be delivered to the wards by the hospital pipelines, and then breathed by the patient with a humidification bottle. Compared with traditional bulk liquid oxygen and cylinders oxygen, ETR on-site Air Separation Unit Hospital Medical Gas Zeolite PSA Oxygen Generator Price For Sale can reduce cost down to 50 percentages. They can produce oxygen by your will, overcoming the limits of distance, location and transportation. Air Separation Unit Hospital Medical Gas Zeolite PSA Oxygen Generator Price For Sale is a more economical and efficient and convenient oxygen solution for hospitals, and it is widely used by more and more hospital.
Compressed air is purified through the air dryer and filters to a certain level for main generator to work with. Air buffer is incorporated for smooth supply of compressed air thus to reduce fluctuation of compressed air source. The generator produces oxygen with PSA (pressure swing adsorption) technology, which is a time proven oxygen generation method. Oxygen of desired purity at 93%±3% is delivered to oxygen buffer tank for smooth supply of product gas. Oxygen in buffer tank is maintained at 4bar pressure.
In both clinical and emergency-care situations, oxygen concentrators have the advantage of not being as dangerous as oxygen cylinders, which can, if ruptured or leaking, greatly increase the combustion rate of a fire. As such, oxygen concentrators are particularly advantageous in military or disaster situations, where oxygen tanks may be dangerous or unfeasible.
Oxygen concentrators are considered sufficiently foolproof to be supplied to individual patients as a prescription item for use in their homes. Typically they are used as an adjunct to CPAP treatment of severe sleep apnea. There also are other medical uses for oxygen concentrators, including COPD and other respiratory diseases.
Used and refurbished units should be purchased through a reputable dealer. Temperamental units are worthless to the medical community since an individual's health frequently relies on the constant extended operation of the unit. However, such units are valuable to metal and glasswork hobbyists. Because oxygen is a "permanent gas" (cannot be liquefied at any pressure at room temperature), it is expensive to obtain in bottled form.
3. working principle
According to the press swing adsorption theory,the high quality zeolite molecular sieve as the adsorbent, under the certain pressure, zeolite molecular sieve has the adsorption capacity selectively,the nitrogen is adsorbed largely by the zeolite molecular sieve selectively, and the oxygen and nitrogen is separated.
We usd two adsorption towers, one adsorb the nitrogen to generate oxygen, one desorb the nitrogen to regenerate the zeolite molecular sieve, cycle and alternation,on the basis of PLC automatic process system to control the pneumatic valve open and colse, thus to get the high quliaty oxygen continuously.
|Production time||40 days|
