3000M3/h Low Consumption Industrial 99.6% Oxygen plant Air Separation Plant

3000M3/h Low Consumption Industrial 99.6% Oxygen plant Air Separation Plant

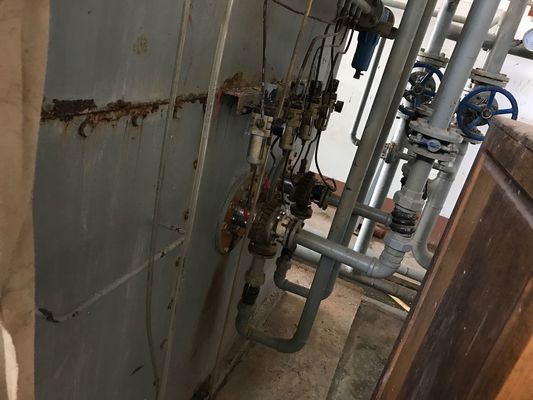

    • 3000M3/h Low Consumption  Industrial 99.6% Oxygen plant Air Separation Plant
    • 3000M3/h Low Consumption  Industrial 99.6% Oxygen plant Air Separation Plant
    • 3000M3/h Low Consumption  Industrial 99.6% Oxygen plant Air Separation Plant
    • 3000M3/h Low Consumption  Industrial 99.6% Oxygen plant Air Separation Plant
  • 3000M3/h Low Consumption  Industrial 99.6% Oxygen plant Air Separation Plant

    Product Details:

    Place of Origin: China
    Brand Name: Tailian
    Certification: GB-150, CE,ASME, ISO9001,TUV
    Model Number: KDON3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD50000-USD5000000
    Packaging Details: Export Standard Packing
    Delivery Time: 3 months
    Payment Terms: L/C, T/T
    Supply Ability: 100sets per year
    Contact Now
    Detailed Product Description
    Purity: 99.6% Flow: 250m3/h
    High Voltage: 6KV Low Voltage: 380V
    Pressure: 0.6mpa Dew Point: <-40℃
    Max Tempt.: 41.3℃ Min Tempt.: -19.1℃

    99.6% Air Separation Plant KDON-3000M3/H Industrial Oxygen Plant With Low Energy Consumption


    KDON3000M3/H High Purity Liquid Oxygen Plant With Argon Production Air Separation Plant


    1. Plant design basis

    2. Main technical parameters

    2.main parameter
    Capacity and purity (out of cold box):

    item capacity(Nm3/h) pressure(MpaG) puriry
    O2 3,000 0.012 99.6% O2
    Pure liquid argon 75 0.15 ≤2 ppm O2,≤3 ppm N2

    raw material air parameter:
    air comrepssor capacity ~16000 Nm3/h Recycling cooling water:
    tempt. 32℃
    inlet/ outlet pressure 0.4/0.2MPa(G) Power:
    high voltage 6KV
    low voltage 380V Instrument gas ( used for starting)
    pressure 0.6 MPa(G)
    tempt. £ 30 ℃
    dew point <-40℃
    flow 250 m3/h
    requirement oil free
    Impurity in air
    CO2 £ 400 ppm
    C2H2 0.5ppm
    CnHm(exceptC2H2) 2ppm
    Mechanical impurity 1mg/m3 untility:

    99.6% Air Separation Plant KDON-AR 3000Industrial Oxygen Plant With Low Energy Consumption

    3.Instrument control design principle and supply of scope
    4. Covered by buyer



    1. Plant design basis (buyer should provide the local condition)
     Design point of Atmosphere
    Atmosphere pressure(annual average) 101.3kPa
    Atmosphere tempt. 32℃
    Relative humidity 70 %
    O2 contained in air 20.95% O2
     Annual average tempt ℃
    Max. Tempt. 41.3℃
    Min. Tempt. -19.1℃
    summer average tempt 25.9℃
    winter average tempt -3.5℃
     Earth shke degree 7degree
     altitude 220m

    5. Attachment 5:Scope of buyer’s preparation
    5.1 Buyer should make sure that the raw material must match the quality requirement
    5.2 All the parts mentioned in proposal would be supplied by buyer.
    5.3 All foundation working and materials including lighting, washing room, supply/drain water device, communication, AC, fire fighting device, cable channel, cable pipe and other crane devices.
    5.4 Power supply transformer, and power protection measurements.
    5.5 Cycle cooling water system including pump, cable, pipe, valves and accessories.
    5.6 cooling water pipe should be set within 1 meter near the every unit.
    5.7 High voltage power to the high voltage panel, Low voltage power to the Low voltage panel
    5.8 All air, gas raw materials, oil, water and power consumption.
    5.9 Plant painting.
    5.10 plant processing materials and tools.
    5.11 manually analyzer
    5.12 Buyer side government certification and fees.
    5.13 Buyer supplies food and living place when seller's technicians working in place.(necessary furniture, cooking stuff, bathroom, TV, communication, internet, medical treatment, transportation, office, safety goods, and working allowance, see to the payment part. )
    5.14 Buyer pays for seller's technician’s VISA, health exams fee, and transportation of international.
    5.15 plant custom and all export import processes payment
    Busbar panel 1 set (covered by buyer)
    Transformer panel 1 set (covered by buyer)
    Transformer panel 2sets (covered by buyer)
    Air compressor power supply panel 2 sets
    Oxygen power supply panel 3 sets
    LV switch gear 2 sets
    Type Drawer type
    Parameters 380V 35KA
    Qt. ~10(incl. s/b)

    DC power supply screen
    Parameter DC220V
    QT. 1 set (covered by buyer) Local control panel
    Control panel for air compressor 1set Expansion turbine local control panel 2sets Liquid resisting soft starter 1set TSCR 2sets LV transformer(~1,000KVA) 2sets (covered by buyer)


    4. 3 Electrical system

    4.3.1 Design principle control system can supervise the whole air separation plant producing process efficiently, ensure the plant running steadily and conveniently.
    Provision of motor control, protection and measuring device must be in accordance with relative national standards and code. There is one HV incoming line designed. Voltage reducing start for HV motor to reduce impact of network and machinery. Busbar voltage is not lower than rated 85% of it during the start of the motor. There are two incoming lines for LV power supply. One line is used as s/b. There is local panel for motor equipment in which electric meters, signal and control element are provided. Busbar voltage is not lower than rated 15% of it during the start of the LV motor. Close loop adjustment by TSCR for electric heater of molecular sieve. Power supply:
    1. High voltage 10KV±5% 3-phase, 3-wire, neutral point not earthing power supply
    2. LV 380V/220±5% 3-phase, 5-wire neutral point earthing power supply
    3. DC power supply: DC24V
    4. Buyer should provide relative network system drawing, short-circuit capacity, and current value for single phase earthing .
    Selection of electric appliances:
    1. High voltage switch box:
    Type Mid-entry vacuum switch gear
    Incoming wire panel and measuring 1 set (covered by buyer)
    oepration platform(including processor, and I/O hardware) 1 set
    terminal board and communication cable 1 set
    system software(including files) 1 set
    Main instrument
    UPS, 6KVA,30MINS in support 1 set
    pressure difference transformor 50 sets
    kinds of regulaors 15 sets
    butterfly valves of M.S. purifier 10 sets
    pt resistance 50 PCS
    orifice plate 3sets
    solenoid flow meter 2sets
    analyzer 4 sets
    including :
    pure O2 analyzer 90~100% O2 1set Other instruments: 1sets Including double metal temperature meter, turning plate meter, 3 valve units, low tempt. Heater, rotor flow meter, pressure gauges. DCS system(determined by t he fianl design) 1set
    main hardware
    oepration platform 1 set
    oepration platform 1 set
    printer 1 set Scope of supply (determined by t he fianl design) DCSsystem is form Zhejiang Zhong Kong. UPSis form Santak. Analysis device is made in China Pressure, pressure difference transformer and flow transmitter is form ChengDu. Regulator is from SanFang Butterfly valve of M.S. purifier is forom PARKER 2 positions 3 ways and 2 positions 5 ways solenoid valves are from PARKER .220VAC/50HZ. Pressure gauges are spring pipe one. Temp. dectective is Pt100 from An Hui Local temeprature meter is double metal temperature meter. Local level gauge adopts turning plate one. Local flow meter is Rotor flow meter, and orifice plate measures the flow. Solenoid flow meter measures water flow.

    Instrument selection
    volume 30M3

    Instrument control design principle and scope of supply
    DCS concentrating and dispersing control system will be decided by final design for selction of the provisions. 2 operation platforms are in the operating rooms to monitor the parameters of the plant with the function of display, operation, regulation, memory , starting and protection interlock. The interlock function can start and stop the plant automatically according to the requirement, which also can be operated manually. There is 1 printer in the operation room to print the parameters and functions when the plant is running. There are Local panels for each machinery, which can display parts of parameters, oeprating, alarm and interlock. There is a analysis room. The analysis device is in the panel, the parameter is displayed, recorded and alrmed in DCS system. Instrument power: 220VAC and 24VDC. DCS system needs continually power supply. The power for instrument system is supplied by the power supply plate of the instrument system.

    inlet: 0.01MPa(G)
    outlet: 1.5MPa(G)
    inlet tempt.: 30℃
    outlet tempt.: £40℃
    type: vertical 2 rows and 2 stages
    shaft power: 142Kw
    spare motor 160Kw
    cooling water consumption: ~18t/h
    scope of supply:host machine;filter;buffer;cooler;motor;pipelines and accessoriesand tools

    oxygen tank 2 sets
    pressure 2.0MPa(G)

    piston oxygen compressor 3 sets(2 sets for running and 1 set for standby)
    manufacturer Hangyang
    discharge capacity 1500m³/h

    Expanssion turbine 2 sets Capacity ~1,800 m3/h
    inlet/outlet capacity ~0.56/~0.144 MPa(A)
    scope of supply:
    1. Main body 2 set
    2. Brake fan 2 set
    3. Filter 2 set
    4. Tools 1 set
    5. Spare parts 1 set
    Process air capcity ~16000m3/h
    Air outlet pressure ~0.58 MPa(A)
    Air intlet pressure 17℃
    MS regeneration tempt. ~170℃
    Working hours 4 hours

    Scope of supply:
    1. MS Adsorber 2sets
    2. Electric heater 2sets
    Power ~200kW
    avarage power consumption ~80kW
    3. Silencer for vent 1 set
    4. M.S. ~3.5×2t
    5. Active alumina ~1×2t
    6. Valves and spare parts 1set

    Distillation column 1 set

    Distillation column space ~3500×4000 mm
    height ~45,000mm

    1. Main heat exchanger 1 set
    2. Upper column 1 set
    Type stuff
    3. Condenser-evaporator (combined with lower column) 1 set
    4. Lower column 1 set
    Type Counter flow sieve plate
    5. LN2, Liquid air subcooler 1 set
    6. Crude argon column 1 set
    7. Pure argon column 1 set
    8. Crude liquid argon pump 2 sets ( 1 running, the other standby)
    9. Cold box 1 set
    10. Pipes and valve inner cold box 1 set
    11. Pipes and valve out of the cold box 1 set
    12. Cold box inner and outside valves, pipes and vessel supports 1 set
    13. cold box, ladders, railing 1 set
    14. venting silencer 2 set
    15. liquid O2 spray evaporator 1 set
    16. steam spray evaporator 1 set
    17. Expansion turbine air filter 2 set

    MS purification system 1set

    air precooling system 1set
    type sealed case type
    Air processing capacity 16,000 m3/h
    air working pressure ~0.58 MPa (A)
    air inlet tempt. <40 ℃
    air outlet tempt. ~8℃
    circular rater inlet pressure ≥0.3MPa
    circular rater inlet tempt. ≤30℃
    cooling water consumption: 50t/h
    motor power 80kW
    shaft power ~70kW
    scope of supply:
    1. imported refrigeration compressor 1set
    2. condenser 1 set
    3. evaporator 1 set
    4. valves of pipeline 1 set
    5. refrigeration self control element 1 set
    6. electrical control board 1 set
    7. oepration instrument board 1 set
    8. water separator 1 set
    Gas,water,oil pipe and accessories 1set
    1 set Vent silencer 1 set Oil cooler 1 set Valves and tools 1 set Spare parts 1 set raw material filter 1 set Process capacity ~30,000m3/h
    Filter efficiency ≥99%
    Filter resistance ≤0.7kPa
    Filter material plant fiber

    scope of supply :
    1. Filt host body 1set
    2. counter blowing system and control system 1 set
    3. Filter bucket 1 set
    4. spares 1 set
    Turbine air compressor 1 set
    manufacturer IHISAMSUNG
    Discharge capacity ~16000m3/h
    Suction pressure 98kPa(A)
    Suction temp. 30℃
    Discharge pressure 0.58Mpa(A)
    Discharge tempt. ≤105℃
    Shaft power ~1380 KW
    Motor power ~1530 K W
    cooling water consumption ~140T/h
    scope of supply:
    1. Compressor body 1set
    2. Asynchronous motor 1 set
    3. Intermedium gas cooler 1 set
    4. subcooler 1 set
    5. iol supply system 1 set
    6. Base and achor bolts 1 set
    7. Safety valve,check valve and vent valve, etc. 1 set
    8. Anti-surge device 1 set
    It consists of all machineries and necessary pipes, flanges and anchor bolts. sets of valves between each machinery
    items water consumption(T/H) remarks
    Raw air compressor 140
    Air precooling unit 50
    Oxygen compressor 18*2 2sets running and 1 set for standby
    Amount ~236

    3. supply of scope
    Introduction of supply of scope

    Raw air compressor 1,380 1,530
    Air precooling unit 70 80
    electrical heater of purifier system 80 200
    Instrument control system 10 10
    Oxygen compressor 142 160
    Unit power consumption(calcltated by shaft power, excluding oxygen compressor and utilities)about 0.51KW.H/Nm3
    cooling water consumption
    air compressor pressure ~0.58MPa(A)
    inlet temp. 32℃
    running periodbetween 2 times defrosting ) > 2 years defrosting time ~36 hours starting time( from start the turbine to get the production) ~36hours POWER CONSUMPTION



    O2 purity 99.60%
    Air compressor capacity 16000nm3/h
    Tempt. 32℃
    Inlet pressure 0.4mpa
    Outlet pressure 0.2mpa
    Capacity 3000M3/h
    Dew point <-40℃
    Flow 250m3/h


     3000M3/h Low Consumption  Industrial 99.6% Oxygen plant Air Separation Plant
